Screw
Current Rating: 15Amp
Working temp.-40°C to +105°C
Feature:

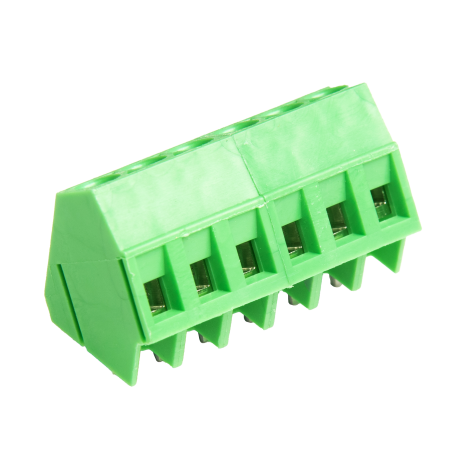

This series of termimal block has a built-in self lift wire guard clamp to protect against with pinching.

Standard sizes are 2 and 3 way-block, but every number of contact can be combined, by simply plugging them togelher and can be ordered as required.

Since the wire inlet and the screw are in a 45 position, these terminal blocks are designed specifically to solve poor accessibility problems.

  • Housing: Nylon UL 94 V-0
  • Contact: Brass, Tin Plated
  • Withstanding Voltage: 2500VAC (1 min)
  • Wire Range: 12-26AWG
  • Screw Torque: 4.0 kgf.cm/M2.5
Application:

Blowers, Control panels, Electrical substations, Energy efficient lighting (LED), Refrigeration control, Variable speed/frequency drivers…
