High speed contact

Thermal solution

Working temp.-55°C to +85°C
Feature:

QSFP-DD can enable up to 14.4 Tbps aggregate bandwidth in a single switch slot.

QSFP-DD electrical interfaces will employ eight lanes that operate up to 25 Gbps NRZ modulation or 50 Gbps PAM4 modulation, providing solutions up to 200 Gbps or 400 Gbps aggregate.

QSFP-DD is designed to Cage design optimizations and module case optimizations enable thermal support of at least 12w per module.

Standards:

OSFP-DD MSA standard

Press-fit contact is compliant with IEC60352.

Connector Pin No: 76

Filter BY
Product
Port No.
Tail Type
Rear Leg
Heat Sink
Description Product Port No. Tail Type Rear Leg Heat Sink Actions

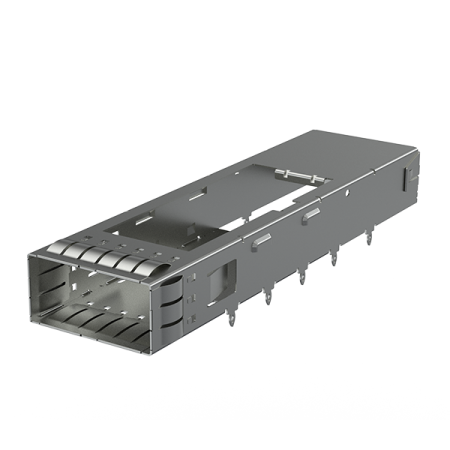

QSFP DD 28Gbps NRZ & 56 Gbps PAM-4 1-by Cages
Cage 1x1 Port Press-fit 2 Legs PCI Heat Sink
QSFP DD 28Gbps NRZ & 56 Gbps PAM-4 1-by Cages
Cage 1x1 Port Press-fit 2 Legs SAN Heat Sink
QSFP DD 28Gbps NRZ & 56 Gbps PAM-4 1-by Cages
Cage 1x1 Port Press-fit 2 Legs NET Heat Sink
QSFP DD 28Gbps & 56Gbps PAM4 Connector 0.8 Pitch
Connector All Solder-SMT No Leg N/A
QSFP DD 28Gbps & 56Gbps PAM4 Connector 0.8 Pitch
Connector Solder-SMT No Leg
QSFP DD 28Gbps NRZ & 56 Gbps PAM-4 1-by Cages
Cage 1x1 Port Press-fit No Leg PCI Heat Sink
QSFP DD 28Gbps NRZ & 56 Gbps PAM-4 1-by Cages
Cage 1x1 Port Press-fit 2 Legs SAN Heat Sink
QSFP DD 28Gbps NRZ & 56 Gbps PAM-4 1-by Cages
Cage 1x1 Port Press-fit No Leg NET Heat Sink
QSFP DD 28Gbps NRZ & 56 Gbps PAM-4 1-by Cages
Cage 1x1 Port Press-fit 1 Leg No Heat Sink
QSFP DD 28Gbps NRZ & 56 Gbps PAM-4 1-by Cages
Cage 1x1 Port Press-fit No Heat Sink
Total11items / Total2pages
